Super MB PRO M6+ DOIP With MULTIPLEXER NEW For MB PRO M6 Plus WiFi Easy Update For MB/BW OBD2 Car Diagnostic Tool+CF C2 laptop

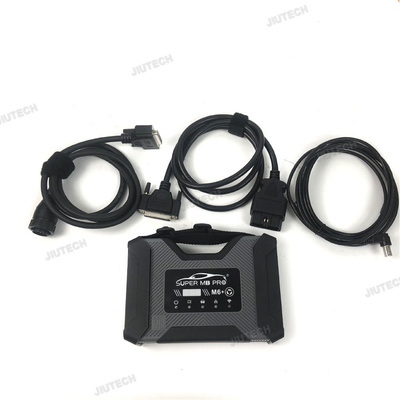

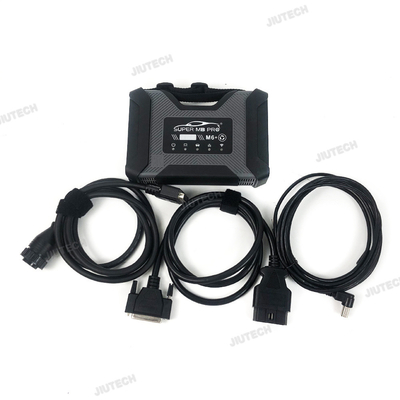

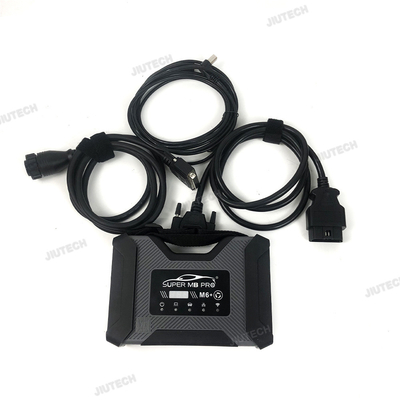

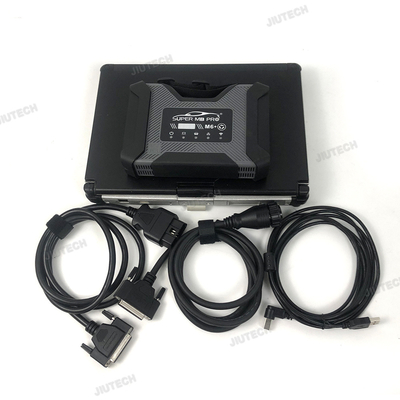

package list:M6+3 cable

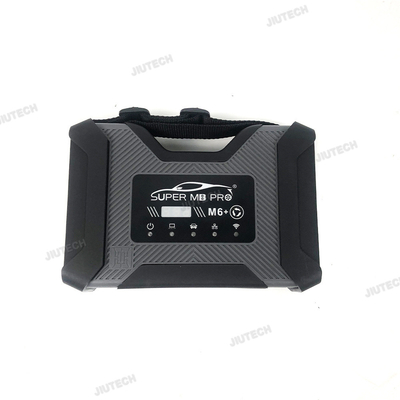

1pc x SUPER MB PRO M6 + Main Unit

1pc x OBD2 16pin Cable

1pc x USB cable

1pc x 14PIN Cable

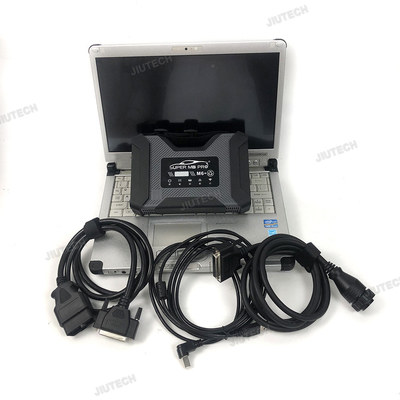

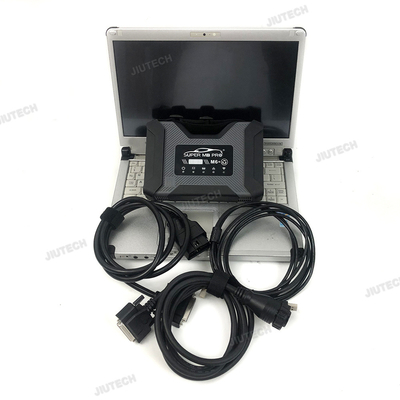

1pc x CF C2 laptop







M6+ PLUS Features:



1.100% compatible with software.

2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.

3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)

4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.



Super MB Pro M6+ Connection Instructions





(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light

① on the host is always on, and the system indicator

② is flashing during startup. After startup,

② is always on and beeps once, indicating the startup is finished.

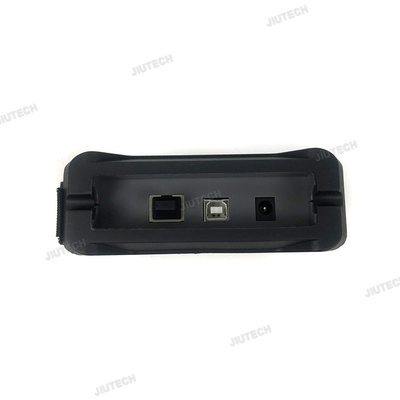

(2)Wired connection: Connect the USB port

⑦ of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network,

④ the indicator light will be on.



(3) Wireless connection:

You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.

(4) After opening the BEN-Z software lock on the computer side, the original diagnostic test software can be used normally.

(5) For remote C-end operation, please consult us.

1.M6+ has greatly improved the product function and compatibility on the basis of M6, and is completely 100% compatible with the original MB software.



2. The M6+appearance front label enables the design with trademark rights and art copyright, which improves the product recognition.



3. The communication interface between M6+and computer is USB3.0 interface, which improves the compatibility of products with computers and tablets. (That's right, so the old and new computers are compatible with tablets, so it's no longer necessary to choose old computers and tablets with network ports. )



4.M6+ supports remote C-terminal operation, and the client does not need to install special diagnostic test software. Just connect M6+ to a local computer with Internet access, and we can provide paid vehicle fault diagnosis and detection services to customers remotely, and customers can set up local remote diagnosis and detection on the local LAN. Greatly improve the flexible use range of products.

5.M6+ supports programming and coding of F and G series by B-M-W E-SYS and AICODER wired and wireless, and supports B-M-W modification, brush writing and hiding.



6.M6+ supports B-M-W APP software, provides English version of Bimmercode, Bimmerlink and other mobile phone software, and supports MHD. bimmer geeks ... xhp flashtool. odis-e.xdelete.thor-the mflash.pro-tool and other mobile phone apps.

7.M6+ supports DOIP communication for all vehicles, such as new Volkswagen, Au-di, Skoda, Bentley and Rambo. A dedicated conversion button is set.

SUPER MB PRO M6+ Features:

1. SUPER MB PRO M6+, with the strong penetration of wireless test and WIFI signal, relieves the dependency on communication transmission cable during test, and greatly reduces restriction on testing distance. The device, adopts the framework concept of original C6 diagnostic tool, is able to replace original MB Star C4. Durable and easy to carry.

2. ABS+PVT plastic structure adoption has the advantages as follows:

1) Impact-proof & easy to carry

2) Lower consumption on product shell against wireless signal

3) Great advancement of wireless communication distance & stability

3. SUPER MB PRO M6+ adopts double-radiation mode (radiation fan & radiation fin). Radiation fan will automatically turn on

high-power radiation mode when SUPER MB PRO M6 internal temperature over 35℃, greatly improving the stability and safety when programming.

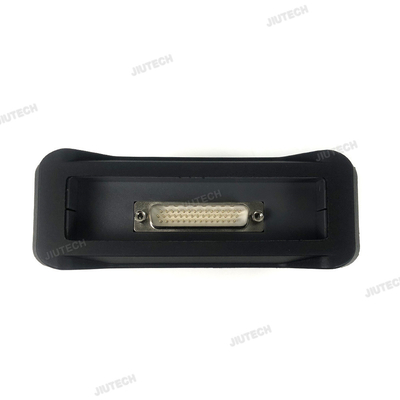

4. Built -in network interface prevents deformation and damage from impact.

5. SUPER MB PRO M6+ is the only diagnostic tool on the market that is highly consistent with the original MB Star C6:

1) Fully compatible with the original software.

2) You can directly upgrade the newest firmware without installing additional driver.

6. Can perform as the same functions as that of the original:

Compatible with the Mercedes B-enz models with protocol DOIP, K-line, CAN Low, Can High, LIN, RS485, etc, works with the old cars and new cars.

7. Support diverse M-ercedes B-enz models, covering 12v car, 24v diesel truck & bus, MPV etc.

8. Support firmware update without installing the battery, but directly plug the device to the OBD port of the car to supply

power, you do not need to worry about that the firmware will be damaged in the process of update.

For MB Vehicles List:

Car Support List:

A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222),
S(221), S(220), S(140), S(126),

E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129),
SL(107), SLS(197),

M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208),
CLS(218), CLS(219), CL(216),

CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Truck Support List:

Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000,
SKL, FSK, Further model series

Bus Support List:

forTRAVEGO, forINTOURO, forINTEGRO, forCITARO, forCAPACITY, forCITO, forTOURISMO, forO350/O403, forCONECTO, forO404, forO405-O408,

forMinibus, forOC500, forTOURO, forTOURINO, forMBC, forMULITEGO, forO500, forO500/OH, forOH, forOH368, forOF, forOF384, forLO,
forO400,

FURTHER MODEL SERIES

Van Support List:

MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario,
Vaneo(414)

Unimog Support List: U20, UGN, UHN
