OBDSTAR P50 Airbag Reset+PINCODE Intelligent Airbag Reset Equipment Covers 91 Brands and Over 12200+ECU Part No.with P004

OBDSTAR P50 Airbag Reset Tool

OBDSTAR P50 is the new generation of intelligent airbag reset equipment of OBDSTAR Technology Co., Ltd. It has powerful function and wide coverage, covering 91 brands and over 12200 ECU part No. and some MCU. It's based on the RK3128 Quad-Core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch screen, touch sensitive.
Language: English only, can't change to other languages.
Ship from US/ EU warehouse, fast delivery & no tax to the USA and EU countries.

Please check the supported list before buying:

OBDSTAR P50 Basic Functions:

1. Supports one-click airbag reset for 91 brands and over 12200 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. One year update for free. 150 USD for update per year from second year. ( 90 USD for another year of update if you renew it before expires)
6. Supports for Hyundai/Kia TC2xxx types bench airbag reset with CAN FD adapter
7. Newly add Battery Reset for Audi/Volvo by BENCH
8. Support Tesla bench airbag reset
9. Support SAS reset function

More functions under development

OBDSTAR P50 Advanced Functions:

Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU

Battery Reset for Audi and for Volvo by BENCH

P004 Highlights:

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CAN BUS ECU;
3. Support 6&14 and 3&11 CAN BUS Protocol at the same time;
4. Optional CAN FD adaptor (Mainly used for models after 2020, such as for HYUNDAI/KIA, etc.);
5. Support for GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. The DB15 connector can communicate with any OBDII-16 I/O interface.

How to use OBDSTAR P50

Please register the device before using.
Instructions for registration.
Distributor code: 0086A002.
The general operation steps are as follows:
1. Read the part number---To see whether it reads the correct part number
2. Read fault codes---Check if there is an airbag crash fault
3. Clear the fault code---A few car models' airbag fault codes can be cleared by cleaning the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the collision record
6. If there is a write VIN function, please write VIN ( Very few Ford and Renault models' VIN information will be erased when cleaning the fault codes)
7. Clear the fault code
8. Read the fault code---To confirm that the fault has been successfully cleared

Attention:
Any part number listed as DIAG ONLY, can read the fault codes only, but can't clear the crash data.

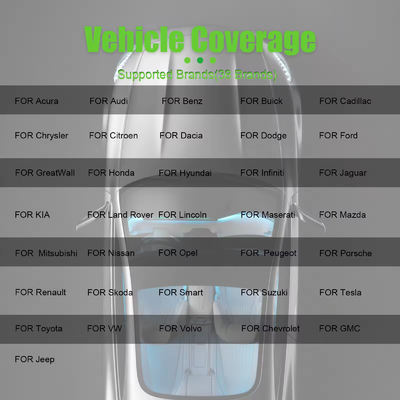

OBDSTAR P50 Vehicle Coverage:

1. Supported 91 brands:
for ACURA, for ALFAROMEO, for ASTONMARTIN, for AUDI, for BAIC, for BAOJUN, for BENTLEY, for BENZ, for BMW, for BRILLIANCE, for BUICK, for CADILLAC, for CHANGAN, for CHERY, for CHEVROLET, for CHRYSLER, for CITROEN, for DACIA, for DATSUN, for DODGE, for FAW, for FERRARI, for FIAT, for FORD, for GEELY, for GMC, for GREATWALL, for HAIMA, for HONDA, for HONGQI, for HYUNDAI, for INFINITI, for ISUZU, for JAGUAR, for JEEP, for KIA, for LADA, for LAMBORGINI, for LANCIA, for LANDROVER, for LEXUS, for LINCOLN, for MASERATI, for MAZDA, for MG, for MINI, for MITSUBISHI, for NISSAN, for OPEL, for PEUGEOT, for POLESTAR, for PORSCHE, for RENAULT, for ROEWE, for SCION, for SEAT, for SKODA, for SMART, for SSANGYONG, for SUBARU, for SUZUKI, for TESLA, for TOYOTA, for UAZ, for VOLVO, for VW, for ZOTYE
2. Cover over 12200 ECU part No. (supporting fuzzy search)
3. Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...
4. Support bench airbag reset for Tesla
5. Support SAS reset for TOYOTA
6. Support battery reset for Audi and Volvo

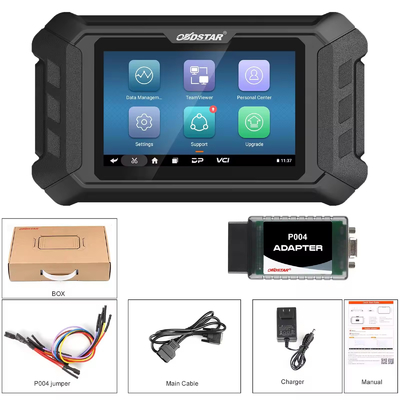

Package Includes:

1pc x OBDSTAR P50 Main Unit
1pc x Main cable
1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A Charger
