V3.5.0 Xhorse Condor XC-Mini Plus Automatic Key Cutting Machine 3 Years Warranty

Please note: Instacode is no longer included with the Condor Mini Plus

Online update

There are 3 ways to get "Upgrade kit" file for firmware update

Method 1: Contact your distributor ask for the software

Method 2: Contact Xhorse technical support skype: Live: condor_keymachine@hotmail.com

Method 3: Scan the QR code to download and install Xhorse APP

Step 1: Unzip the "Upgrade kit" file after the file has been downloaded

Step 2: Run "Upgrade Kit.exe" and connect the machine with the pc

Do not turn off the machine during update process and also the upgrade kit software will update automatically

Step 3: Open the file of 'Driver' from those decompressed files

Choose a relatively new driver to install

Please kindly notice:

If the computer still cannot recognize the machine after the installation of the driver, it is advisable to change to another driver.

If all the drivers fail, please contact your distributor or technical support from the manufacturer.

Step 4: After the machine is successfully communicated with the computer

Read the serial number, then select the XCMINIPLUS and click to update

Note: Please keep the machine connected to the computer by USB during the update.

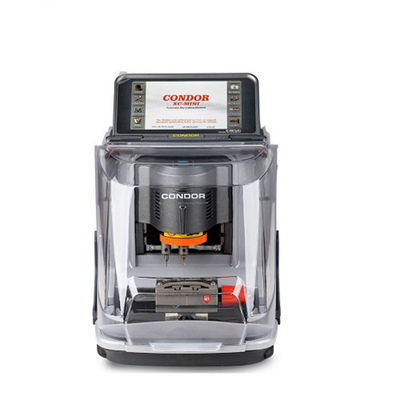

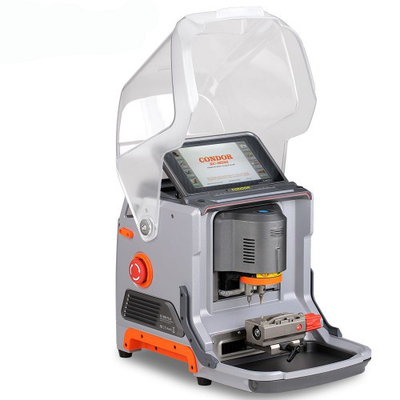

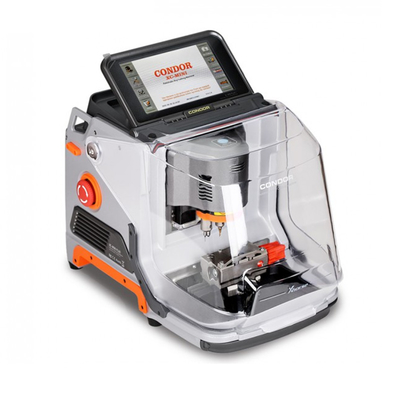

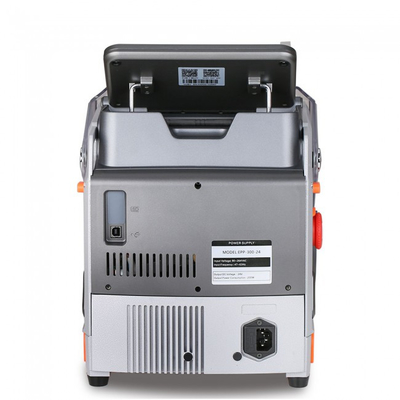

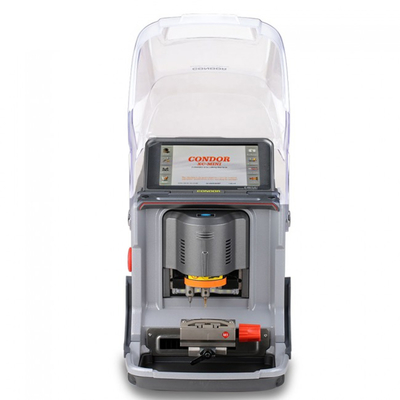

Outlook:

with flexible screen display which is convenient than Condor Mini.

Space between cover and key is bigger…. Many keys with casings like VW flip key will allow you to close the cover.



Inside parts:

Dolphin XP-005 vs Xhorse Condor

Condor Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.

Key Cutting Machines Condor XC-Mini Plus Dolphin XP-005 Image Screen LED Display 1024×600 Adjustable Touch-Screen Small screen showing battery and Bluetooth status Spindle Electric spindle brushless 300, built-in angular contact bearing Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing Transmission mechanism Ball screw T-shaped screw + anti-backlash nut Guide Cross-track Roller guide Shell Plastic outer casing body is formed by body alloying die casting Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting. Operating system Stand-alone/ mobile phone APP mobile phone APP only Battery Without built-in battery.   Power supply adapter(optional) With built-in battery. 3 hours to fully charge. Full battery cut up to 30 keys Built-in Database Yes No All Keys Lost Yes, offline operation Yes, must enable network connection.* Accuracy more accurate Less accurate Offline operation Standby No Service life/ mechanical endurance Longer Shorter Weight Net Weight: 18kg   Gross Weight: 22.9kg Net Weight: 15kg Gross Weight: 18kg Motor Rotation Speed 9000rpm 10000-13000RPM Cutting power: 200W 100W Protection cover Comprehensive protection Simple protective cover. . Smaller, better wear goggles VVD binding Yes Yes Clamp M1 clamp (included)   M2 clamp (included) M3 clamp (optional) M4 clamp (optional) M1 clamp (included)   M2 clamp (included) M3 clamp (optional) M4 clamp (optional) Warranty 3 Years 1 Year Update Update online via Xhorse Update Kit Update online via Xhorse Update Kit Price US$3,099 Free Shipping US$1,950 Free Shipping *Once enable network connection in Condor Dolphin Xp005, the all keys lost database is the same as Condor Mini Plus offline mode.

Condor Mini Plus Package List:
