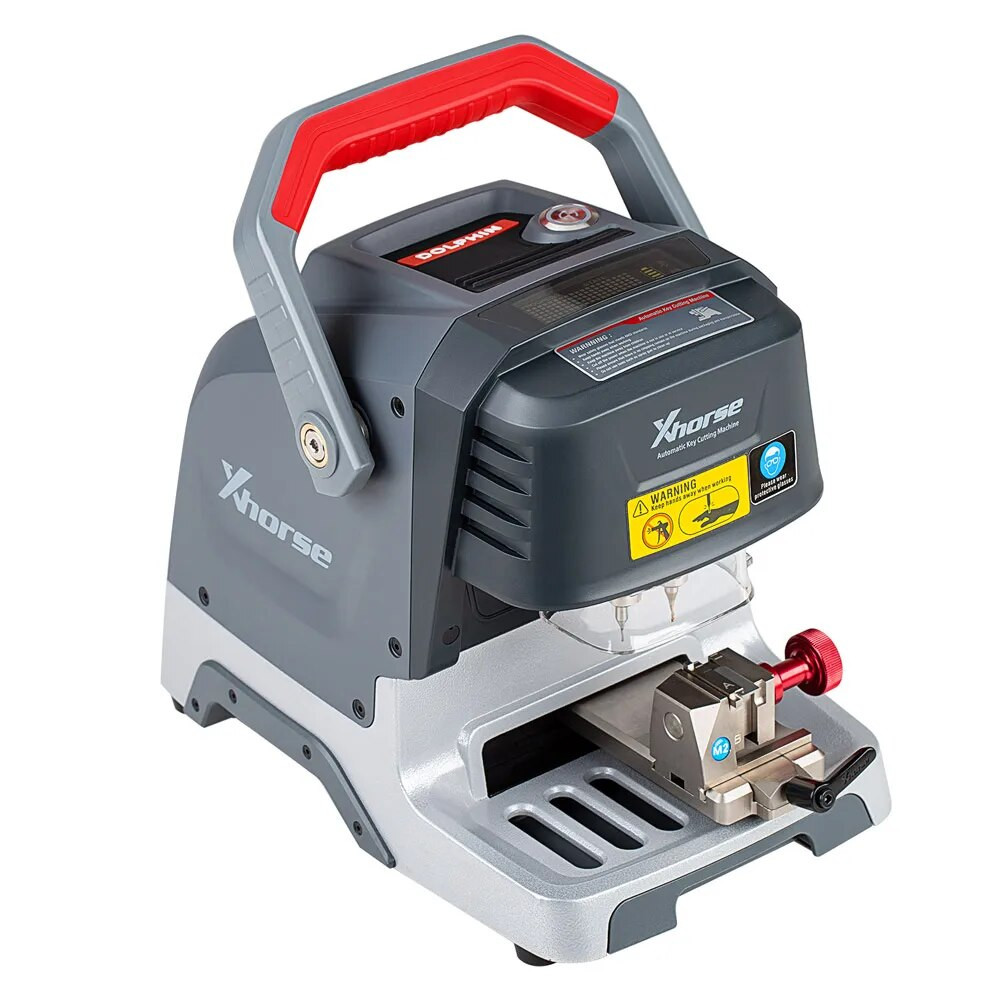

Xhorse Dolphin XP005 Key Cutting Machine by Mobile App Multi-Languages

Product Description

Fast Shipping from EU or UK or US or CN warehouse, No Tax

Dolphin XP-005 Highlights:

1. Newest Version: Firmware V1.6.8
2. Free Update Online via Xhorse Upgrade Kit
3. Support Bluetooth, work on both iOS and Android mobile phone
4. Same Build-in Database as Condor Mini Plus, Supports All Keys Lost
5. 1 Year Warranty for Machine and 6 Months Warranty for Battery.
6. Optional key bitting recognition (works with key reader)
7. Support Sided, Track, Dimple, Tibbe, Some Household Keys, support Plastic and Aluminum Keys
8. Xhorse APP Language: English, Spanish, French (Free to Switch Yourself)
Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese (Need to Get from Local Dealer)
9. Bind with VVDI MB Tool or Key Tool Plus to Get 1 Free Token Everyday.
10. Read Bitting from Key Blade Photo, Support Get Bittings from Photo.
11. Supporting Self-Calibration, Supporting Key Duplication and Cutting for Vehicle Keys, Supporting Universal Key Decode for Multiple Key Types
12. XP005 now is compatible with M5 clamp

Note: The Dolphin XP-005 machine can cut laser and cylinder keys out the box; and with the addition of the optional M3 Jaw Clamp you can cut FO21 (Tibbe) and SX9 keys and with the M4 clamp is applicable to single-sided house-key.

Xhorse Dolphin XP-005 User Manual
How to Register Xhorse App for Dolphin XP-005?
Download Xhorse Dolphin Windows x32 x64 Drivers
Xhorse Dolphin XP005 (KM06 KM12) Maintenance Manual


Xhorse Dolphin XP-005 Key Cutting Machine Features:

APP smart cellphone operation

Built-in Bluetooth function, use smart cellphone to download APP, easy for smart operations
• Android: Android 4.0 and above version
• Apple devices: IOS 8.0 and above version

Portable and convenient

Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

Standard equipped 2 clamps with powerful function

Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

Manufacture Process

All aluminum body structure, Manufactured by Germany-made DMG CNC machine;

American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Data Richness

Provide rich vehicle data, blank key data, the best tool of all key lost.

Intelligent Control

Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

Built-in Lithium Battery

Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.

Online update

Free online update software, the latest update information will be released timely, 24 hours support server online update, no need to back for update.

Technical service

One-year warranty, free technical support, online service to provide remote control support

Xhorse Dolphin XP 005 vs Condor Mini Plus:

Xhorse condor dolphin xp005 key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.

Item	Condor Dolphin	Condor XC-MINI Plus
Pic
Screen	No touch screen,only display battery,bluetooth status.	Screen with adjustable angle, easier to adjust proper viewing angle
Spindle	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing	Electric spindle brushless 300,built-in angular contact bearing
Transmission mechanism	“T-shaped screw + anti-backlash nut	3-Axis precision ball screw,more accurate and stable than T Screw transmission
guide	Roller guide	Cross-track
shell	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.	All aluminus main body,plastic shell, larger space than condor mini.
Fixture	Standard fixture(M1,M2) (M3 M4 Optional Clamp)	Standard fixture(M1,M2) (M3 M4 Optional Clamp)
Manipulation	No touch screen, no built-in database, operate on Phone APP	Quick start, with touch screen, built-in database
Offline operation	not support	support
Dedicated app	Support dedicated mobile phone APP	INSTACODE Software APP
Built-in battery	built-in lithium battery one-time full charge	Optional Accessory: Power Supply Adapter with Built-in Battery
protecting mask	Comprehensive protection
VVDI MB binding	Yes. After bind,VVDI MB is one token free everyday.	Yes. After bind,VVDI MB is one token free everyday.
Cutting speed	1X SPEED	2X SPEED
Update	Database update in APP	Online Update, support offline file update.
weight	18Kg	22.9Kg
Warranty	1 year	3 years

Dolphin XP005 is automatic machine working with phone app it's good machine ,fast and easy on the job.
Xhorse Dolphin XP007 is manual has limitations.
relies on your skill of locksmithing or requires keymoulds for all key lost situation.but it's also good for cloning keys.
overally xp005 and xp 007 are both good tools that a locksmith should have.
if your are a learning locksmith start with xp005 its good for learning.


How to Update Dolphin XP 005 Key Cutting Machine?

Software update can be done via xhorse app. But firmware update requires downloading Upgrade Kit to PC.
Download windows driver above if your system can not recognize device.
Need only if upgrate kit can not do Frimware update/not recognize device.

Also, can be download and install directly from Upgrate Kit

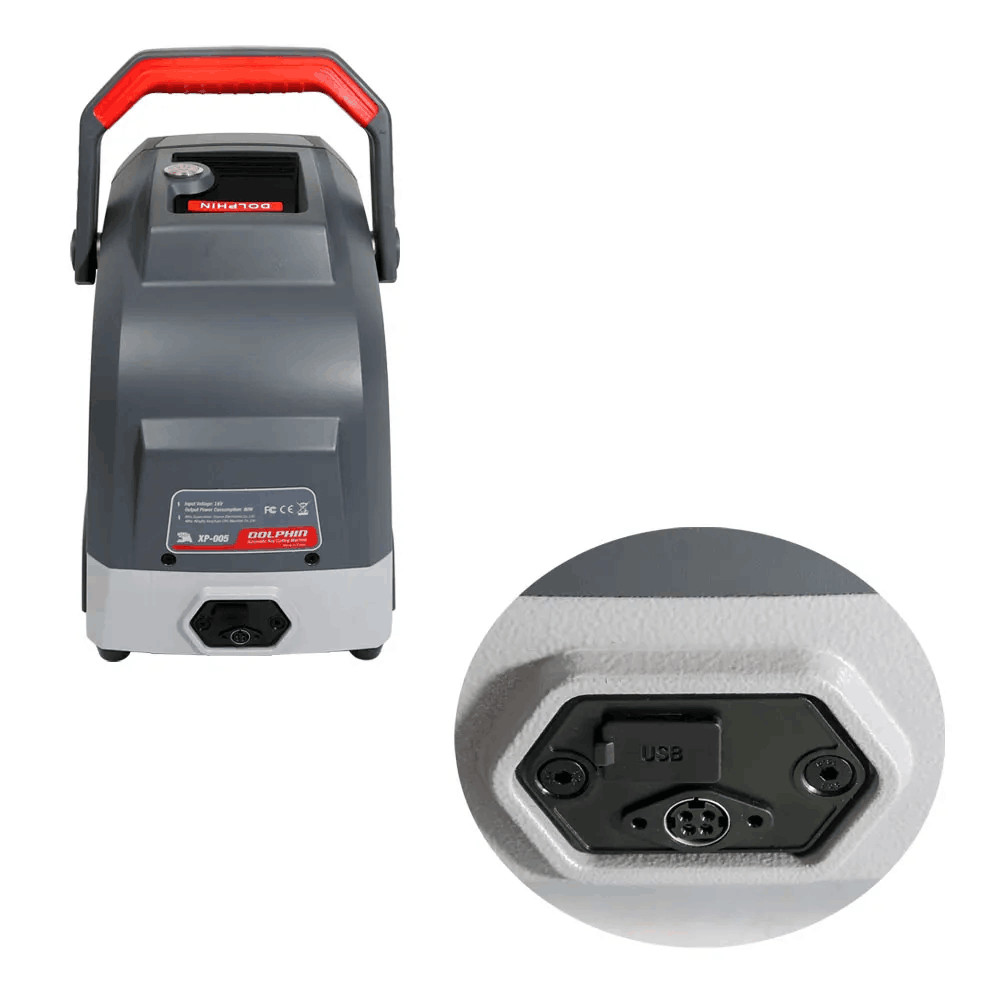

1, Turn on the Xhorse Mini Dolphin machine and connect it with the computer via USB cable, it will show the BIOS on the screen of Dolphin as below,

2, Run the upgrade kit and choose "Find Device", it will be show a small window , choose "Yes" and will guide to install the driver

3, Choose the correct driver according to the machine as below, make sure you are shut down all protection before you install the driver, especially for windows 10 system

4. Install Windows driver for Dolphin

5.After the driver has been installed, run the "Upgrade kit" and choose "Find Device" again, to see if you can see the device serial number and firmware version, do not chose "Update" until it you can see that , because if you can't find device ,which means the driver is not been installed, and the machine will be blocked if you update it without driver


How to Update Xhorse Dolphin XP-005 Database?

1) Enter Dolphin XP-500 main interface and click "Update"
2) Click "Database Update"
3) If you find a new version, Click "update" and download the new version. Click on "OK" after download database sucess.
If cellphone connected by mobile internet data, a prompt saying that download maybe costs data fee, recommed downloading by Wifi

Condor Dolphin XP-005 Update Log:

V1.5.6 (2010-10-28)

This version need to update the firmware.

Fix universal key duplication about M4 clamp decoding.

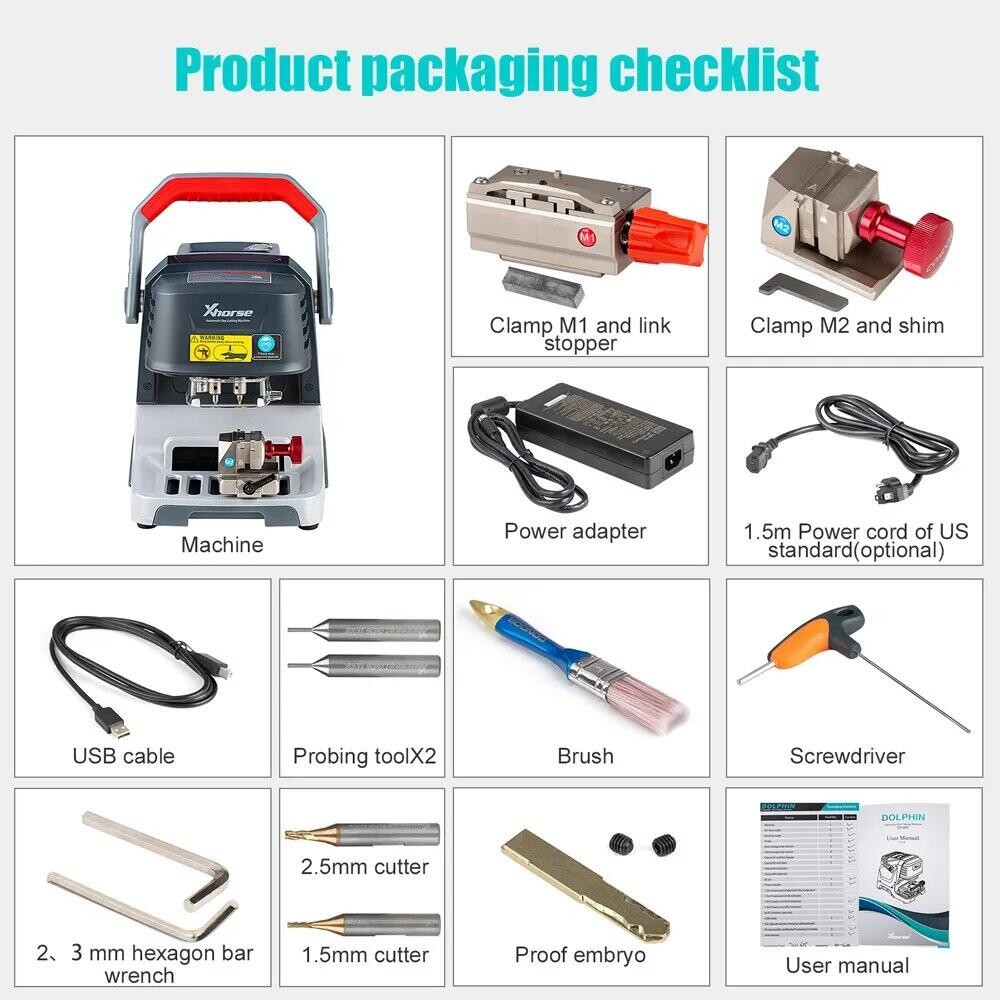

Xhorse Dolphin Package and Accessory

Xhorse Dolphin Key Cutting Mahine Parameters:

Working temperature: -10~50℃
Input voltage:12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm
USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg

Dolphin Clamp Installation Steps:
1) Unscrew the clamp locking screw.
2) Choose the proper clamp for your keys, slide it into the clamp holder, and push it to the limit from the right side.
3) Fix the clamp locking screw until the clamp is locked.
