V2.3.2 Xhorse Iscancar V-A-G MM-007 Diagnostic and Maintenance Tool Update Online Supports MQB Mileage Correction

Product Description

PN: XDMM01EN

Hardware version: 2.3.2 (Please use Xhorse Update Kit software to Update)
Software version:V2.3.0
ADD LATEST MQB mileage change (WORKS PERFECT)
Language: English

Basic function:
Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login etc.

Guide function:
There are many commonly used functions. We have simplified the process so you can follow more easily.

Special function:
OBD read PINs, adaption after replacing controller, gateway register etc.

Write data record:
When replacing new controller, you must write data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data record offline. And you can active some functions like MKE etc.

Example for write data record:

1. On an Audi A5 PQ35 when replacing a Gateway Module with a Part Number of 7N0907530AN you can active MKE after writing the data record through the iiScancar, you can then set MKE on the vehicle's Driver Information Center after the coding is complete.
2. When replacing an MQB Gateway with a Part Number of 5Q0907530AJ you can active MKE after writing the data record through the iScancar, you can then set MKE on the vehicle's Driver Information Center after the coding is complete.
3. On an Audi A5 PQ35 when replacing a Kessy Module with a Part Number of 5K0959434B there will be a DTC reporting “no basic setting” and the car will not recognize the key(s) to authorize starting. After writing the offline recorded data to the module the DTC will disappear and the vehicle will recognize the key(s) and start normally.
4. On an MQB VAG Vehicle after replacing a Kessy Module with a Part Number of 5Q0959435A you will have a DTC of 10478040 (invalid data record and the vehicle will not detect the working key or keys). After writing the offline recorded data the DTC will disappear and the vehicle will detect the key(s) properly.
5. On an MQB VAG Vehicle when replacing a Front Camera with a Part Number of 5Q0980653G there will be a DTC of 0649 (invalid data record). After writing the offline recorded data the DTC will disappear.
6. On an MQB VAG Vehicle when replacing an ACC Radar Module with a Part Number of 5Q0907561A you will have a DTC of 0759 (invalid data record). After writing the offline recorded data the DTC will disappear.
7. On a VAG PQ Platform Vehicle when replacing a Tire Pressure Monitor with a Part Number of 3AA907273D there will be a DTC of 12652550 (invalid data record) and the Module will not function.After writing the offline recorded data the DTC will disappear can you can then configure this system on the vehicle's Driver Information Center.
8. On an MQB VAG Vehicle when replacing a DCC Adaptive Suspension Module with a Part Number of 5Q0907376 you will have a DTC of 813056 (invalid data record). After writing the offline recorded data the DTC will disappear.
9. On an MQB VAG Vehicle when replacing a Parking Assistance Module with a Part Number of 5Q0919298K there will be a DTC of 10478040 (invalid data record). After writing the offline recorded data the DTC will disappear.

Essential Function of Refitment and Maintenance:
Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation and EPB replace brake pads. In addition, further functions will be added continuously.

Built-in database:
There’s a built-in database in the diagnostic tool. Users can write data record without online account. It has already supported many controllers, and more data will be continuously added.

Technical Support:

Online Upgrade:
The V-A-G MM-007 can be upgraded through the internet.

V2.2.9 (2018-05-16)
+1: Simulator:
Sniffer all modules data.
Main menu->Module simulation->sniffer data.
Sniffer CAN Bus data.
Main menu->Module simulation->sniffer data;
Load online file.
Main menu->Module simulation->Load online file.
Simulate all modules.
PC sofware->user choose modules.

+2: Read 4th gen IMMO and MQB dashboard key ID.
Main menu->Guide function->17 dashboard.

+3: Golf7 sportsvan ABS code generate.
Main menu->Guide function->03 ABS.


Parameters:
Voltage: 5V USB / 12V OBD
LCD resolution: 320×240
USB standard: USB2.0
Working temperature: 0-60°C
OBD line length: 1.5meters
Power consumption: 80mA/12V

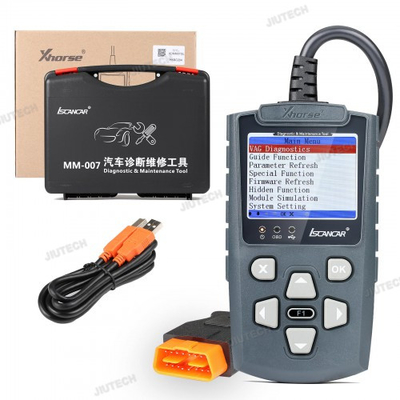

Package including:
1pc x MM-007 Diagnostic and Maintenance Tool

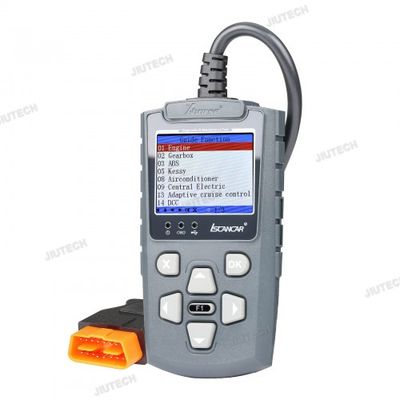

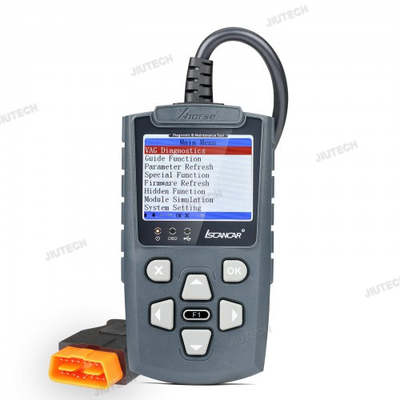

iScancar V-A-G MM-007 Scanner Menu Display:
