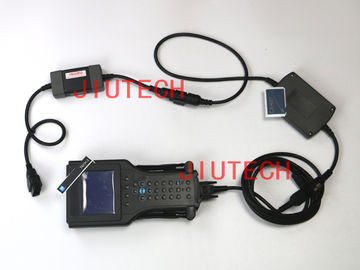

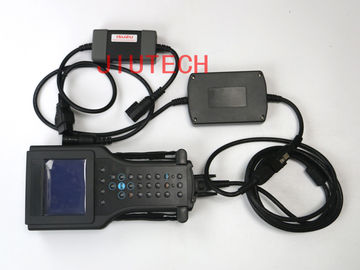

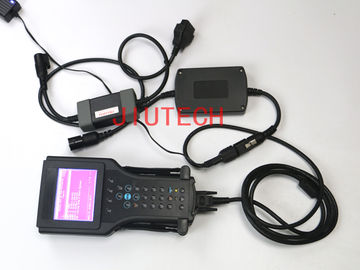

Full Set Isuzu Heavy Duty Truck Diagnostic Scanner Euro 4/5 Truck Diagnosis V169

Isuzu Truck Diagnosis Scanner for ISUZU Euro 4 Euro 5 Truck Diagnosis

Software version is: V169 software.

This software is special for ISUZU EURO 4/ 5 Trucks.

We have doulbe tested before delivery.

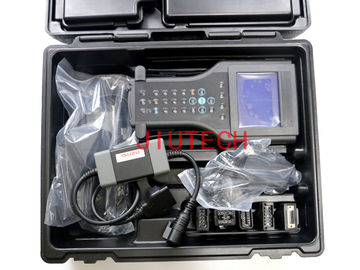

Package List:

Isuzu Tech2 full set*1
Isuzu 24V adatper for truck test*1
32mb software card: V169*1
Hard est*1


ISUZU Tech-2 is the same tester GM Technicians use to diagnose ISUZU vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all ISUZU systems 1992 to 2014
Features:
Authentic ISUZU software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model ISUZU vehicles.
Support for on-board diagnostics on all ISUZU systems 1992 thru current year.
Removable hardware modules provide insurance against scan tool obsolescence.
Large, easy-to-read backlit screen.
RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
Ability to view the status of vehicle diagnostic tests as they run.
Bi-directional
The authentic ISUZU 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

ISUZU Tech-2 Specifications

Dimensions
12″×6″×2″

Microprocessor
32 bit, 16 MHz

Memory
32 MB flash type II PCMCIA. Type III slot available for future expansion.

Communications
Integral RS232 communication port.

Screen
3.8″×2.8″ backlit monochrome with full graphics capability: 320×240 pixels. Displays up to 9 vehicle parameters at once
ISUZU Tech-2 Starter Kit with Candi Module & TIS Kit includes :

Tech-2 Flash Tester
32 MB PCMCIA Card with ISUZU OE Applications
CAN diagnostic interface module(CANdi) and instruction sheet download ( 199.2 kb )
GM aftermarket Expertec TIS software on DVD-ROM disks
Data/Sensor/Trouble Code Manual
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable
SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
Storage est
